ZEV Type2-Type2, 32A, EV Charging Cable

Product Features
  • Dirt and heat resistant – IP Protection Class: IP55 when connected
  • Supplied with protective fitted cap
  • Straight coiled or combination cable
  • Connectors are TUV Certified IEC/EN62196
  • Impact resistant
  • Complaint with all battery electric and plug- in hybrid vehicles
  • UV resistant
  • Cable sets compliant with home workplace and public charge points with a Type2 socket.
  • Highly flexible
  • Tethered cables compliant with electric vehicles with a Type2 or Type1 inlet

3-Year Warranty

Nationwide Delivery

Expert Installers

Expert Installation

Zev charging cables are specifically designed for use with today’s electric vehicles. They are suitable for commercial, depot, workplace, domestic, and mobile environments. Made from premium-quality materials to the highest standards (ISO9001/2015), these cables are manufactured and thoroughly tested in the UK. They are designed to transfer power supply to the electric vehicle, capable of delivering up to 32 amps, three-phase (22 kw) at voltages between 450 and 750 volts.

Colour Options for Various Environments

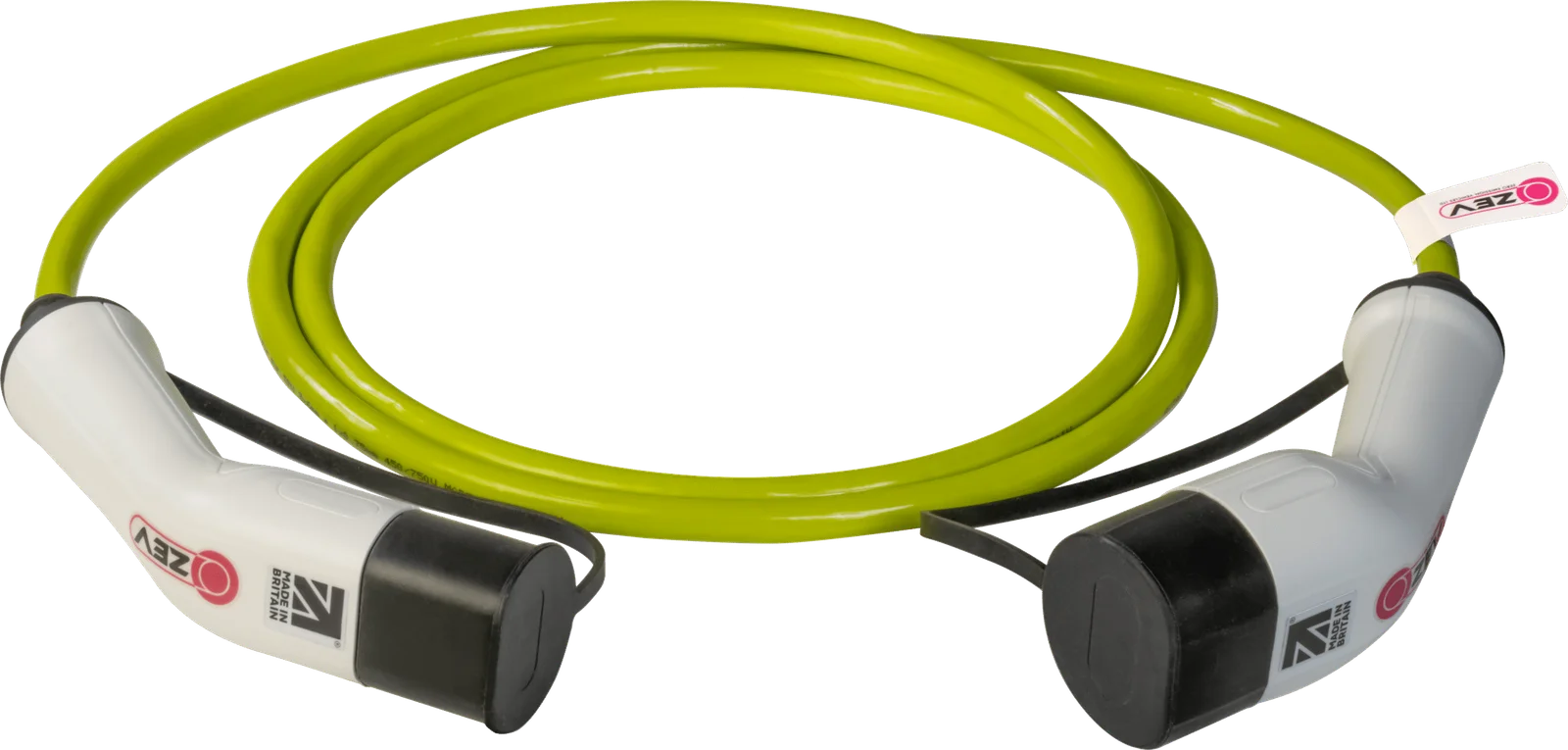

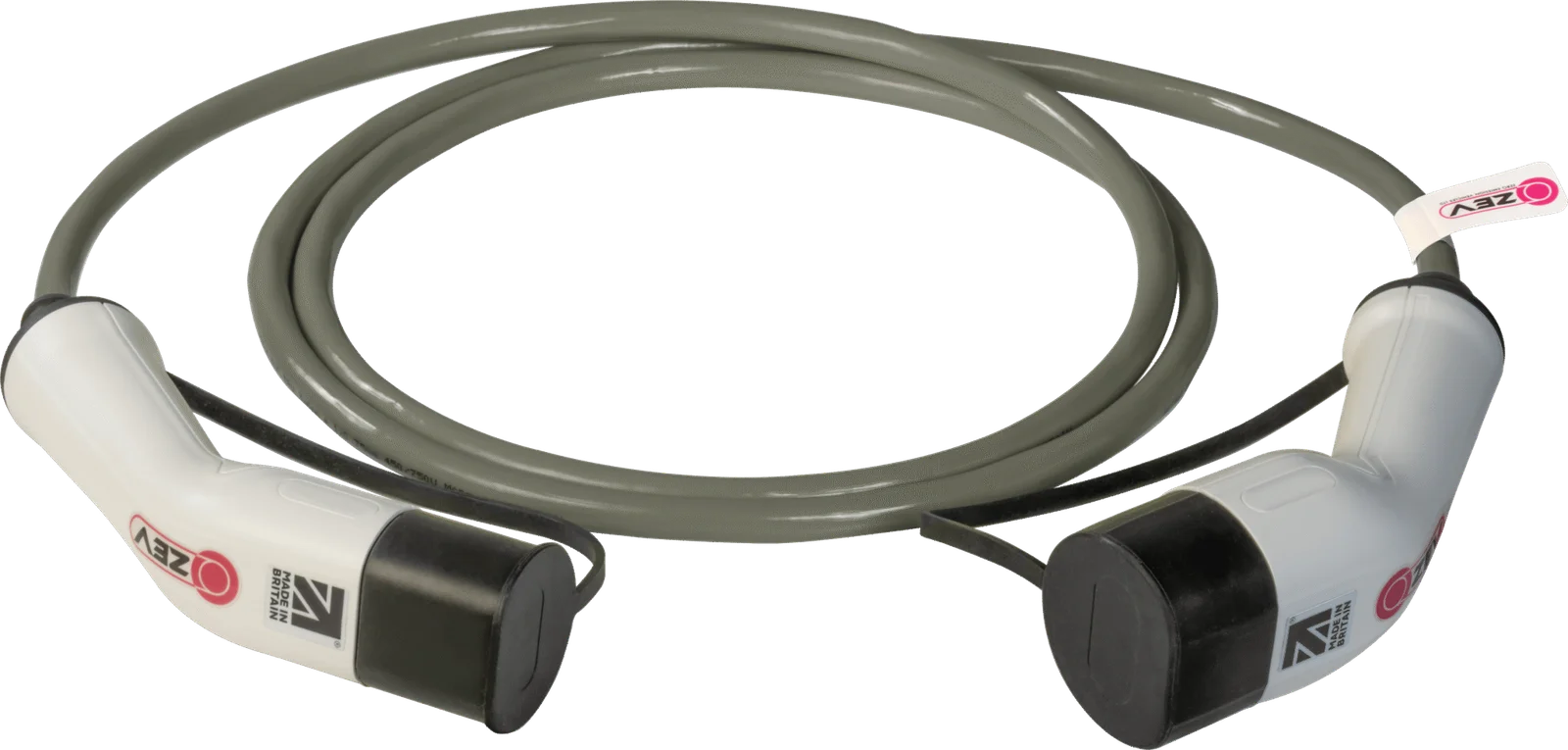

Zev cables are available in discreet grey for unobtrusive installations, and in high-visibility lime green for areas with heavy pedestrian traffic, helping to reduce trip hazards.

Reliability

The cables are sheathed in high-quality, dirt-resistant polyurethane (PU). The three power cores for single-phase applications and five power cores for three-phase installations are safely insulated to ensure uninterrupted current flow. Additionally, a smaller pilot core enables communication between the charging points and the electric vehicle.

Durability

Zev cables are designed to be highly flexible and resistant to damage from bending and flexing. They feature high tear resistance, making them extremely robust. They can withstand mechanical loads, impact, and abrasion, while being resilient to harmful chemicals. Built for consistent and repetitive use, Zev cables can endure heat, sunlight, moisture, and ageing, providing long-term reliable connectivity for electric vehicle charging applications.

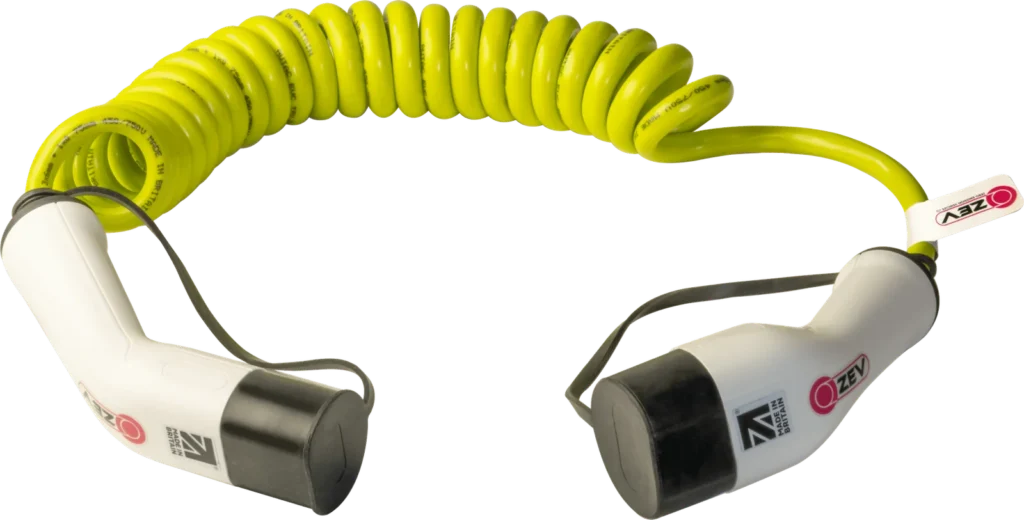

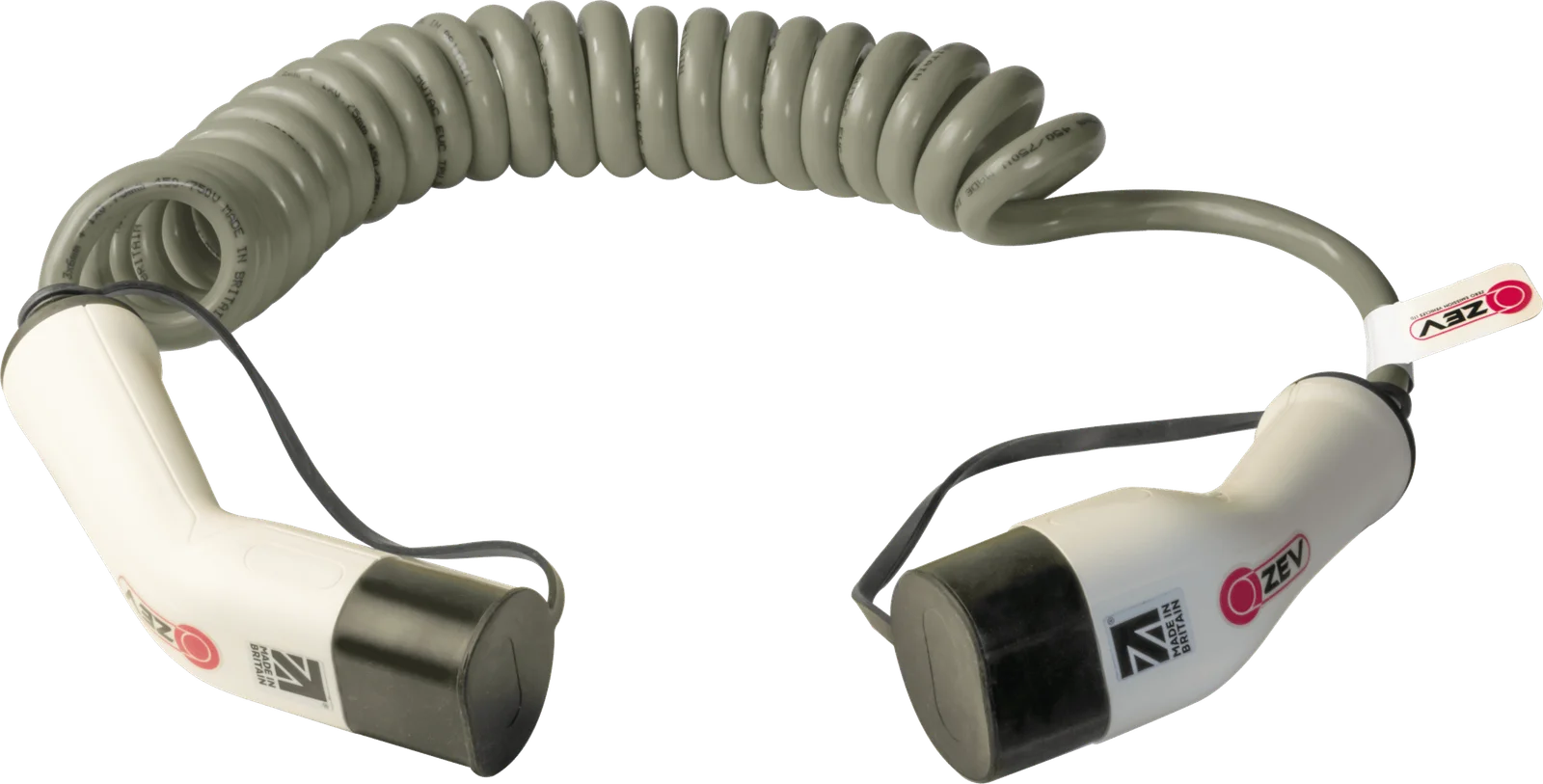

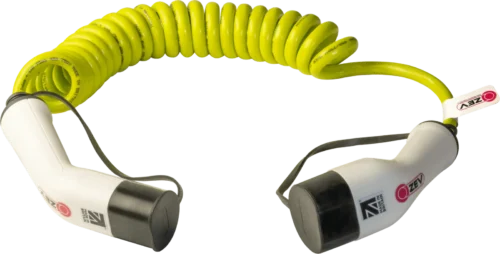

ZEV Coil
Conductor Material
Plain Copper
Conductor Class
According to BS EN 60228
Conductor Size mm2
Single phase: 4 / Three phase: 6
Sheath Colour
Grey and Lime Green
Cable Diameter mm
Single phase:14.00 / Three phase: 16.00
Bend Radius mm
Bend Radius mmSingle phase: 25.00. / Three phase: 31.00
Temperature Range
-40° – +90°
Rated Voltage & AMPS
450/750V 32
AC Charging Rate
Up to 7.2kw & Up to 22kw

Installation

Professional installation, done right.

Our qualified installers handle everything from start to finish, so you can enjoy safe and reliable charging at home.

01 - Site Assessment

Our qualified installers handle everything from start to finish, so you can enjoy safe and reliable charging at home.

02 - Professional Installation

Our qualified installers complete the charger installation, including mounting, cable routing and electrical connection.

03 - Testing & Commissioning

Once installed, we carry out safety checks and test the charger to make sure everything is working correctly and ready to use.

04 - Handover & Guidance

We show you how to use your charger, explain the key features and make sure you’re comfortable using it before we leave.

05 - Aftercare & Support

Our support continues after installation. If you need help with your charger or have questions about its operation, our team is here to assist.
